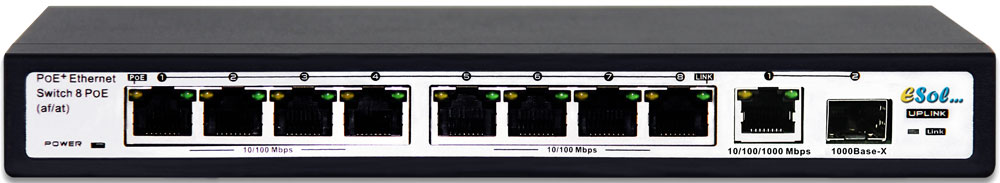

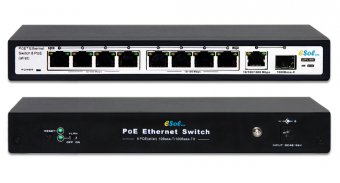

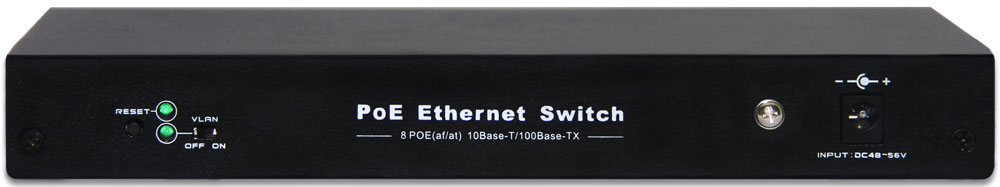

ESOL-SO8PoE-P120-1G-1SFP - Switch PoE 8-Port 10/100Mbps IEEE 802.3af/802.3at + Extra 1-Port 10/100Mbps UPLINK RJ-45 + Extra 1-Port 1000Base-X UPLINK SFP port

Cod: ESOL-SO8PoE-P120-1G-1SFP



Click pe poza pentru marire

ESOL-SO8PoE-P120-1G-1SFP - Switch PoE 8-Port 10/100Mbps IEEE 802.3af/802.3at  + Extra 1-Port 10/100Mbps UPLINK RJ-45 + Extra 1-Port 1000Base-X UPLINK SFP port
Descriere

ESOL-SO8PoE-P120-1G-1SFP - Switch PoE 8-Port 10/100Mbps IEEE 802.3af/802.3at  + Extra 1-Port 10/100Mbps UPLINK RJ-45 + Extra 1-Port 1000Base-X UPLINK SFP port

  • 8 Porturi 10/100 Mbps +  1-Port 10/100/1000Mbps
  • UPLINK RJ-45 + 1-Port 1000Base-XUPLINK SFP
  • Standard IEEE802.3, IEEE802.3u, IEEE802.3ab,
  • IEEE802.3az, IEEE802.3af/at
  • IEEE802.3x full-duplex flow control; Auto MDI/MDIX
  • 8 Porturi PoE 48V-56VDC
  • 120 Watt PoE – 15.4 Watt / Port
  • Surge Protection 6KV
  • Port VLAN pentru Securitate sporita

Pret: Intreaba
Cantitate:
Trimite unui prieten Evaluați acest produs Adauga la produse dorite

ESOL-SO8PoE-P120-1G-1SFP - Switch PoE 8-Port 10/100Mbps IEEE 802.3af/802.3at  + Extra 1-Port 10/100Mbps UPLINK RJ-45 + Extra 1-Port 1000Base-X UPLINK SFP port

Porturi Retea - 8 Porturi 10/100 Mbps +1-Port 10/100/1000Mbps UPLINK RJ-45 + 1-Port 1000Base-XUPLINK SFP
Distanta de Transmisie - 100m pentru Porturile Ethernet (1~8)  si Portul de Up-Link 250m pentru 10Mbps
Standard PoE - IEEE802.3af/at
Mod alimentare PoE - End-Span
Putere PoE - Fiecare Port accepta <30W, iar tot Switchul are 120W
Standarde de retea - IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX/FX, IEEE802.3az
Swap - Store-and- forward
Data-Caching Mechanism - 1M
MAC Address List - 4K
Backplane Bandwidth - 5.6Gbps
Surge Protection - 6KV(conditii obisnuite),10/700us IEC61000-4-5 / 2KV(differential),10/700us IEC610000-4-5
Protectie Electrostatica - Descarcari contact: +/- 4KV / Descarcari in aer: +/- 6KV / Standard IEC61000-4-2
Alimentare - DC (48-56)V
