Esol - Switch PoE 4-Port 10/100Mbps IEEE 802.3af/802.3at + Extra 1-Port
Click pe poza pentru marire

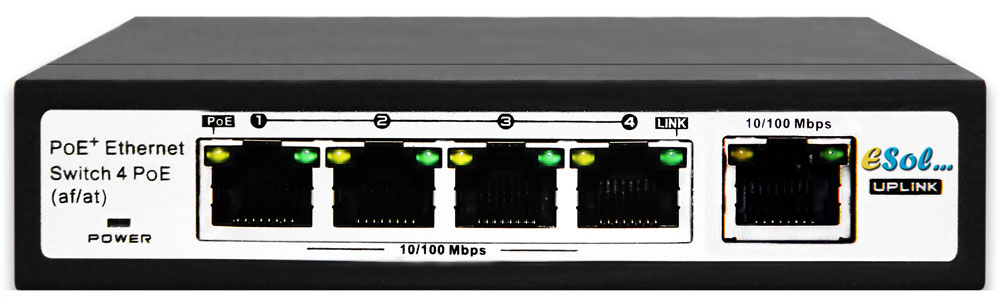

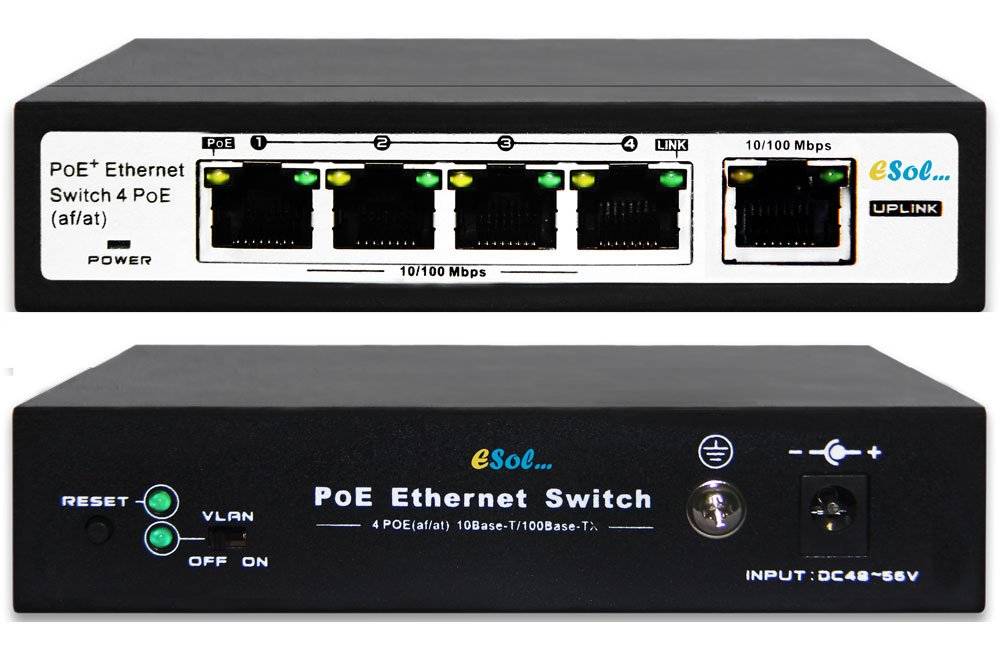

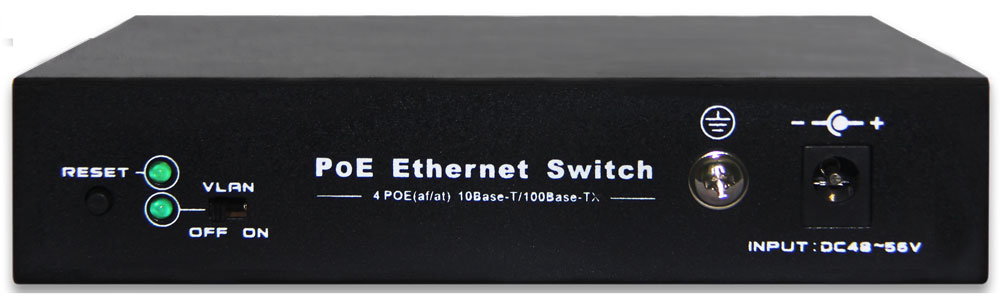

ESOL-SO4PoE-P60 - Switch PoE 4-Port 10/100Mbps IEEE 802.3af/802.3at + Extra 1-Port 10/100Mbps UPLINK RJ-45
- 4 Porturi 10/100 Mbps + 1 Port 100 Mbps Up-Link
- Standard IEEE802.3, IEEE802.3u, IEEE802.3af/at
- IEEE802.3x full-duplex flow control; Auto MDI/MDIX
- 4 Porturi PoE 48V-56VDC
- 60 Watt PoE – 15.4 Watt / Port
- Surge Protection 2KV
- Port VLAN pentru Securitate sporita
- Producător: Esol
ESOL-SO4PoE-P60 - Switch PoE 4-Port 10/100Mbps IEEE 802.3af/802.3at + Extra 1-Port 10/100Mbps UPLINK RJ-45
Porturi Retea - 4 Porturi 10/100 Mbps + 1 Port 100 Mbps Up-Link
Distanta de Transmisie - 100m pentru Porturile Ethernet (1~4) si Portul de Up-Link 250m pentru 10Mbps
Standard PoE - IEEE802.3af/at
Mod alimentare PoE - End-Span
Putere PoE - Fiecare Port accepta <30W, iar tot Switchul are 60W
Standarde de retea - IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX/FX, IEEE802.3az
Swap - Store-and- forward
Data-Caching Mechanism - 448k
MAC Address List - 1K
Backplane Bandwidth - 1.0Gbps
Surge Protection - 2KV(conditii obisnuite),10/700us IEC61000-4-5 / 500V(differential),10/700us IEC610000-4-5 / Descarcari contact: +/- 2KV
Protectie Electrostatica - Descarcari in aer: +/- 2KV / Standard IEC61000-4-2
Alimentare - DC (48-56)V
