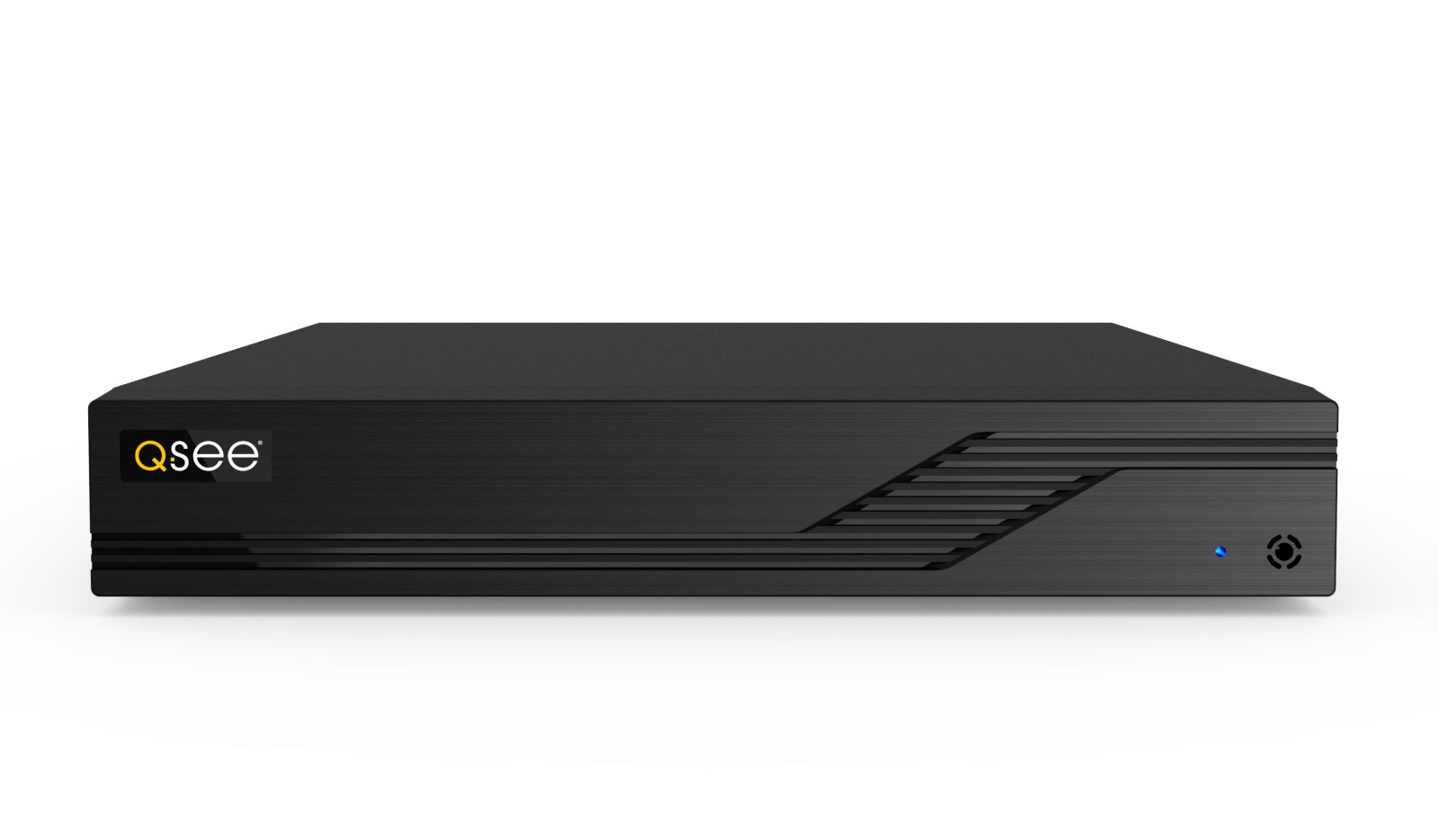

Q-See QTH87-IP - DVR Hybrid 8 canale 8MP (4K) HDTVI / HDCVI / AHD / CVBS + 8 canale IP
Cod: QTH87-IP
Click pe poza pentru marire
Descriere
-
DVR 8 canale: 8MP (4K) HDTVI / HDCVI / AHD / CVBS
-
Accepta: 8 camere IP (8MP)
-
Standard: H265
-
Rezolutie vizualizare: TVI / AHD : 8MP / 5MP / 4MP / 3MP / 1080P / 720P / WD1 ; CVI : 4MP / 3MP / 1080P / 720P / WD1
-
Inregistrare: 4K / 4K Lite / 5MP / 5MP Lite / 4MP / 4MP Lite / 1080P / 720P / WD1 / D1
-
Frame rate: 4K@6 / 7fps (PAL / NTSC) , 5MP Lite@20fps (PAL / NTSC) ; 4MPLite / 1080P / 720P / WD1@25fps (PAL) / 30fps (NTSC) ; 4MP@12fps(PAL) / 15fps (NTSC) ; 4K Lite@12fps / 15fps (PAL / NTSC) ; 5MP@12fps (PAL / NTSC)
-
Rezolutie IP: 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P; Frame rate - 25fps ( PAL ) / 30fps ( NTSC )
-
Iesiri video: 1 x HDMI; 1 X VGA; 1 X BNC
-
Capacitate de stocare: 1 HDD SATA max. 6TB
- Producător: Q-See - Calitate Americana
- DVR 8 canale: 8MP (4K) HDTVI / HDCVI / AHD / CVBS
- Accepta: 8 camere IP (8MP)
- Standard: H265
- Rezolutie vizualizare: TVI / AHD : 8MP / 5MP / 4MP / 3MP / 1080P / 720P / WD1 ; CVI : 4MP / 3MP / 1080P / 720P / WD1
- Inregistrare: 4K / 4K Lite / 5MP / 5MP Lite / 4MP / 4MP Lite / 1080P / 720P / WD1 / D1
- Frame rate: 4K@6 / 7fps (PAL / NTSC) , 5MP Lite@20fps (PAL / NTSC) ; 4MPLite / 1080P / 720P / WD1@25fps (PAL) / 30fps (NTSC) ; 4MP@12fps(PAL) / 15fps (NTSC) ; 4K Lite@12fps / 15fps (PAL / NTSC) ; 5MP@12fps (PAL / NTSC)
- Rezolutie IP: 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P; Frame rate - 25fps ( PAL ) / 30fps ( NTSC )
- Iesiri video: 1 x HDMI; 1 X VGA; 1 X BNC
- Consum: ≤ 15W ( fara HDD)
- Compatibil: iPhone / Android
- Capacitate de stocare: 1 HDD SATA max. 6TB
Sistem: | PAL/NTSC |
---|---|
Compresie video: | H265 High Profile |
Intrari video: | 8CH (up to 16CH) |

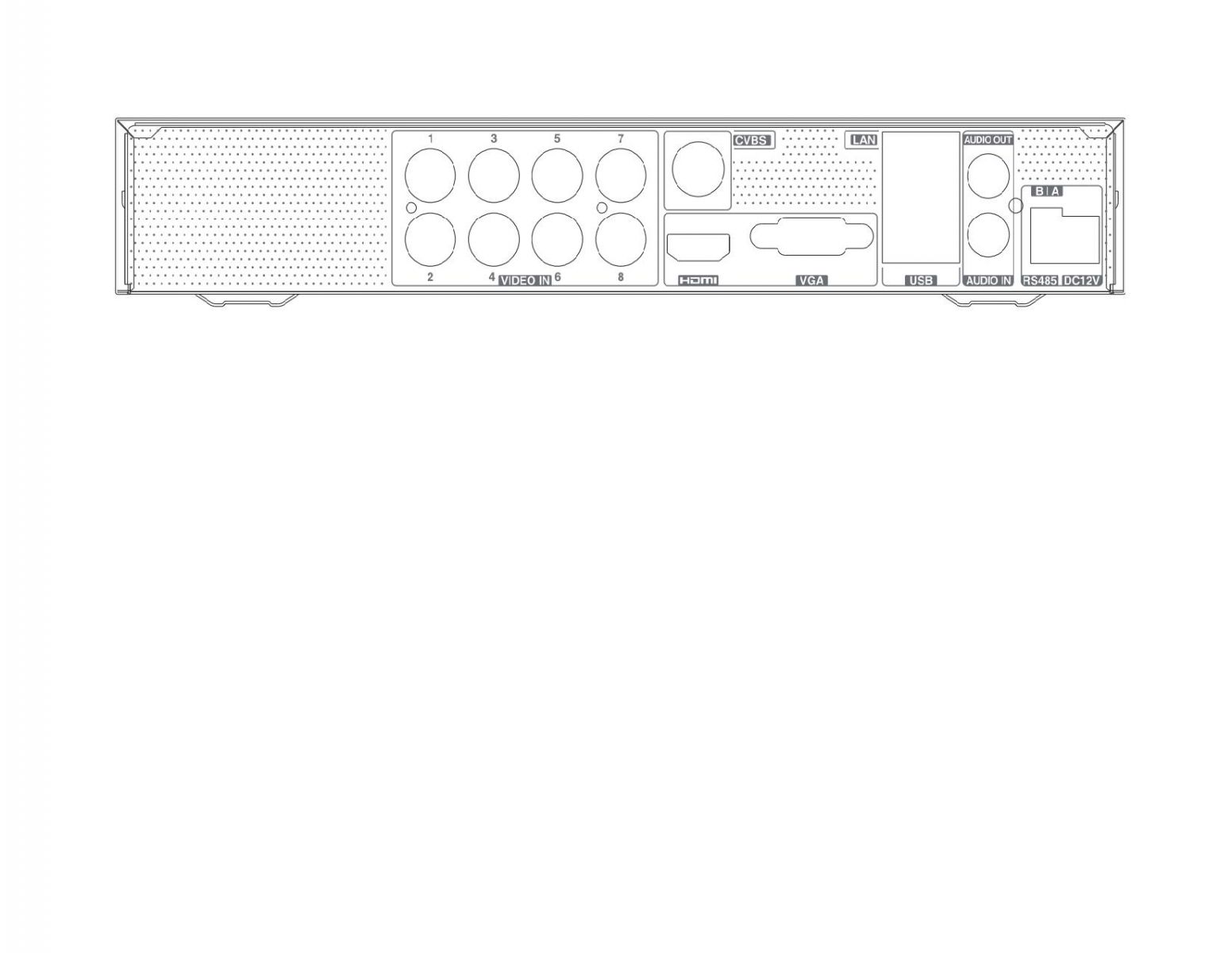

Iesiri video: | 1 x HDMI; 1 x VGA; 1 x BNC |
Intrari audio: | 1 x RCA |
Iesiri audio: | 1 x RCA |
Intrari alarma: | - |
Iesiri alarma: | - |
Rezolutia : | TVI/AHD : 8MP/5MP/4MP/3MP/1080P/720P/WD1; CVI : 4MP/3MP/1080P/720P/WD1 |
Rezolutia inregistrarii: | 4K/4K Lite/5MP/5MP Lite/4MP/4MP Lite / 1080P/720P/WD1/D1 |
Capacitate de stocare: | 1 x HDD 6TB |
Moduri de inregistrare: | Manual, programat, detectie miscare |
Mod de cautare: | Timp/calendar, eveniment |
Control PTZ: | Da |
Alte porturi: | 1 x RS 485; 2 x USB 2.0 |
Retea: | RJ 45 100Mbps |
Telecomanda: | Da |
Dimensiuni: | 255mm × 233mm × 42mm ( W × D × H ) |
Alimentare: | 12V / 2A |
