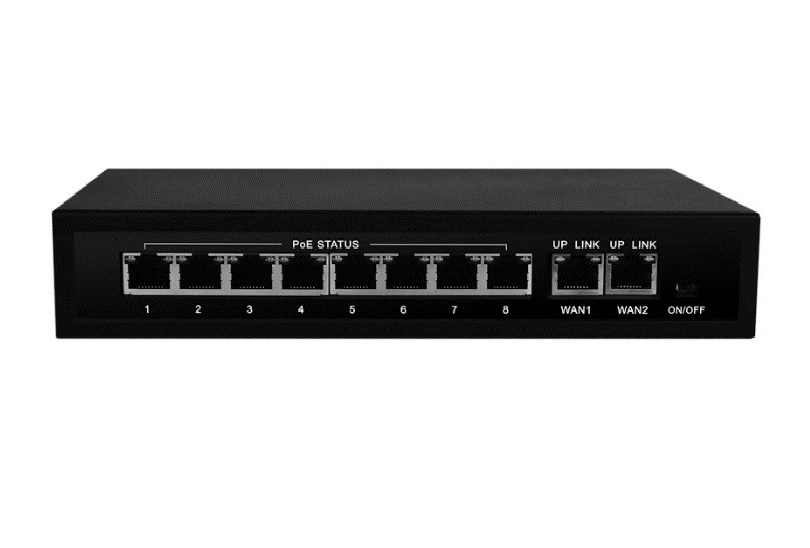

ES8POE+2X1000 - Switch 8 Porturi 10/100 Mbps + 2 Port 10/100/1000 Mbps Up-Link

Switch 8 Porturi 10/100 Mbps + 2 Port 10/100/1000 Mbps Up-Link



Alimentare:

• Input：110-240V/AC 50-60Hz 5, 120W,

Nivel Protectie:

• Supratensiune: +-4KV – conditii obisnuite,
• Diferenta Potential: +-1KV,

Conectori Retea:

• Porturi Retea:
• 1~8 port: :10/100Mbps PoE Ethernet LAN portWAN1/WAN,
• 2 port : 10/100/1000Mbps Ethernet WAN port,
• Distanta Transmisie:
• Standard (1~8 port)：100m,
• Extins:(1~8 port:): 200m,
• WAN1/WAN2 port: 100m,
• Transmisie via: Cablu Cat5/5e/6 standard,

Switch Retea:

• Standard:
• IEEE802.3/10BASE-T,
• IEEE802.3u/100BASE-TX,
• IEEE802.3x Flow Control, IEEE802.3az,
• Maxim: 1536 Bytes,
• MAC address: 2K,
• Backplane bandwidth: 1Gbps,

Power Over Ethernet:

• PoE Standard:  IEEE802.3af/at,
• PoE Power Supply Type: End-Span(4/5+;7/8-),
• PoE Power Consumption: af,at Adaptive (every port),

LED Status Indicator:

• PoE Ethernet:
• Cand PoE este alimentat, LED-urile 1-8 LEDs sunt verzi,
• Cand se aceeseaza porturile Ethernet LED-rile 1-8 sunt galbene,

Temperatura de lucru:

• 0℃~55℃, 10%-90% non-condensing,

Temperatura de depozitare:

• -40℃~70℃, 5%-95% non-condensing,

Caracteristici Fizice:

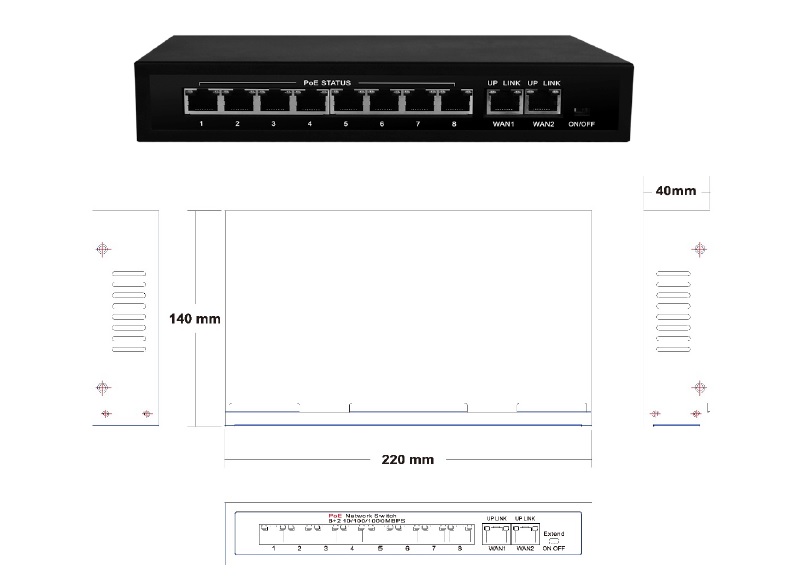

• Dimensiuni: (L x W x H) mm 220 x 140 x 40,
• Material: SECC,
• Culoare: Gri inchis.
